Using the Docker Command Runner¶
The docker Command Runner executes commands in a container. Build-magic will start a new container named build-magic using the image specified by --environment. The container will start detached from the build-magic sub-process, use a pseudo TTY, and override the container entrypoint to /bin/sh.
Note
Build-magic only supports Linux-based containers with the docker Command Runner. Windows-based container will fail to launch.
Running Shell Commands¶
The docker Command Runner invokes /bin/sh to execute commands, allowing the use of redirection and piping.
> build-magic --verbose \
--runner docker \
--environment alpine:latest \
-c execute 'echo "hello world" > hello.txt' \
-c execute 'cat hello.txt'
build-magic:
- stage:
runner: docker
environment: alpine:latest
commands:
- execute: echo "hello world" > hello.txt
- execute: cat hello.txt
Environment variables can be included in commands by wrapping the command in single quotes:
> build-magic --verbose \
--runner docker \
--environment alpine:latest \
'echo $TERM'
build-magic:
- stage:
runner: docker
environment: alpine:latest
commands:
- execute: 'echo $TERM'
Setting the Working Directory¶

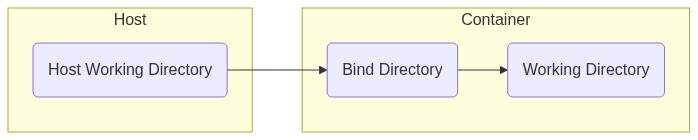

When using the docker Command Runner, the Working Directory option --wd refers to the Working Directory within the container. Build-magic mounts a local directory, referred to as the Host Working Directory, to a Bind Directory in the container. The Bind Directory in the container might or might not be the same as the Working Directory.
By default, the Host Working Directory is the current directory build-magic is executed from, but can be changed with --parameter hostwd.
> build-magic -r docker -e alpine --parameter hostwd /home/myproject make
build-magic:
- stage:
runner: docker
environment: alpine
parameters:
hostwd: /home/myproject
commands:
- execute: make
The Bind Directory and Working Directory both default to /build-magic in the container. The Bind Directory can be changed with --parameter bind.
> build-magic -r docker -e alpine --parameter bind /app --wd /app make
build-magic:
- stage:
runner: docker
environment: alpine
working directory: /app
parameters:
bind: /app
commands:
make
Just as with every other Command Runner, the Working Directory can be changed with the --wd option.
Copying Files Into the Container¶
By establishing a mount, all files in Host Working Directory are available from Bind Directory in the container. While it's possible to work on files in the Bind Directory, it isn't recommended for I/O intensive operations like compiling code. Docker has some overhead associated with the mount, so in situations where performance is slow, it's a good idea to instead copy files from the Bind Directory to the Working Directory.
Individual files can be copied into the container from a directory specified with the --copy option. If using the --copy option, the files to copy should be specified as arguments.
> build-magic \
--runner docker \
--environment alpine:latest \
--copy /home/myproject \
--wd /app \
--command install "apk add gcc" \
--command build 'make' \
main.cpp plugins.cpp audio.cpp
build-magic:
- stage:
runner: docker
environment: alpine:latest
copy from directory: /home/myproject
working directory: /app
artifacts:
- main.cpp
- plugins.cpp
- audio.cpp
commands:
- install: apk add gcc
- build: make
Instead of copying individual files to the Working Directory, an entire directory can be used by the container by setting the Host Working Directory, Bind Directory, and Working Directory:
> build-magic \
--runner docker \
--environment alpine:latest \
--parameter hostwd /home/myproject \
--parameter bind /app \
--wd /app \
--command install "apk add gcc" \
--command build 'make'
build-magic:
- stage:
runner: docker
environment: alpine:latest
parameters:
hostwd: /home/myproject
bind: /app
working directory: /app
commands:
- install: apk add gcc
- build: make
Cleaning Up New Files¶
Compiling software into executables can often produce extra files that need to be manually deleted. Build-magic can clean up these newly created files with the cleanup Action.
The cleanup Action will take a snapshot of every file and directory in the Host Working Directory before the Stage runs. At the end of the Stage, any files or directories that don't exist in the snapshot are deleted.
If the Working Directory is different from the Bind Directory, all files will be lost when the build-magic container is destroyed when build-magic exits. However, if the Working Directory is also the Bind Directory, any newly created files in the Host Working Directory will be deleted.
The exception is for files that are copied to the Host Working Directory from a directory specified with the --copy option. Since these files are copied before the Stage starts executing Commands, they will not be cleaned up when the Stage ends.
If there are build artifacts that shouldn't be deleted, they should be moved or deployed before the Stage ends so that they aren't deleted. These build artifacts are typically binary executables, archives, or minified code and should be pushed to an artifactory, moved, or deployed before the Stage ends.
The cleanup Action can be executed with the --action option.
> build-magic --action cleanup \
-r docker \
-e alpine:latest \
-c build 'python setup.py sdist bdist_wheel --universal' \
-c release 'twine upload dist/*'
build-magic:
- stage:
runner: docker
environment: alpine:latest
action: cleanup
commands:
- build: python setup.py sdist bdist_wheel --universal
- release: twine upload dist/*
Note
There is a special exclusion to prevent deleting files and directories that are modified inside the .git directory in the working directory to prevent git from becoming corrupted.
Debugging the build-magic Container¶
If a command fails in the container for an unknown reason, the persist Action can be used for troubleshooting. The persist Action will keep the container running in the background after build-magic has exited.
> build-magic --runner docker \
--environment alpine:latest \
--action persist \
--command execute "cp"
build-magic:
- stage:
runner: docker
environment: alpine:latest
action: persist
commands:
- execute: cp
The command cp will fail because it doesn't have any arguments. The container will continue to run and can be seen with:
> docker ps all
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
7fa0295c9d93 alpine:latest "sh" 36 seconds ago Up 34 seconds build-magic
The container can be inspected by running a shell on the container with:
> docker exec -it build-magic /bin/sh
When finished, exit the container with exit. The container can then be stopped and destroyed with:
> docker stop build-magic
> docker rm build-magic
Until the build-magic container is stopped and destroyed, build-magic won't be able to start a new container.
